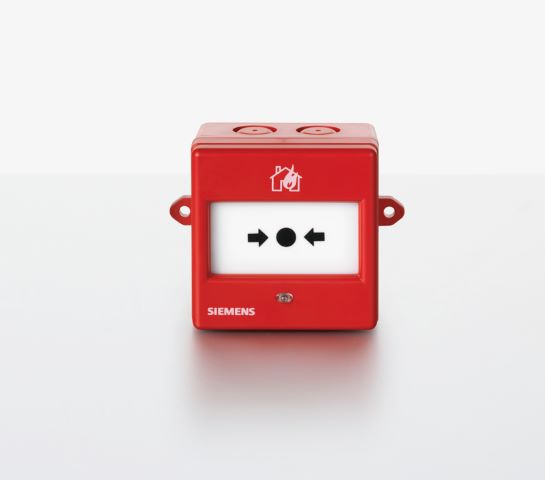

SIEMENS FDM226-RP
Product Features
For immediate manual activation of a fire alarm.
For indoor and outdoor applications.
Direct alarm actuation by pressing the plastic element.
It is reset with the button button and the device becomes ready to work again.
For surface and flush mounted supply lines in easily accessible locations.
Technicial Specifications
- Operating voltage DC 12…33 V
- Operating temperature -25…70 °C
- Protection category IP66
- Relative humidity ≤95 % rel. (no condensation)
- Standard EN 54-11 , EN 54-17
- Dimensions (W x H x D) 87 x 87 (113) x 57 mm
- Quiescent current 180 μA
- Storage temperature -30...+75 °C
- Terminal block 0,28…1,5 mm2
- Communication protocol FDnet/C-NET
- Color Flame red, ~RAL 3000
- System compatibility FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
- Accessories FDMC295 Protective cover
